MERIDA. MORE BIKE.
Manufactured in Taiwan, the hub of the cycling industry, using cutting-edge frame technologies, which are developed and tested in Germany. Featuring top-quality, state-of-the-art components.
MERIDA sponsors top professional cycling teams including Road Team BAHRAIN VICTORIOUS, MTB Merida Factory Racing, MTB D2mont Merida, and others. They also support athletes such as Kristin Atzeni, Tom Wheeler, Lennard Heidenreich, Anders Backe, Elisabeth Brandau, and more.
Any remaining doubts? One of the best things about MERIDA Bikes is that the manufacturer offers a LIFETIME warranty on frames (exclusions may apply).

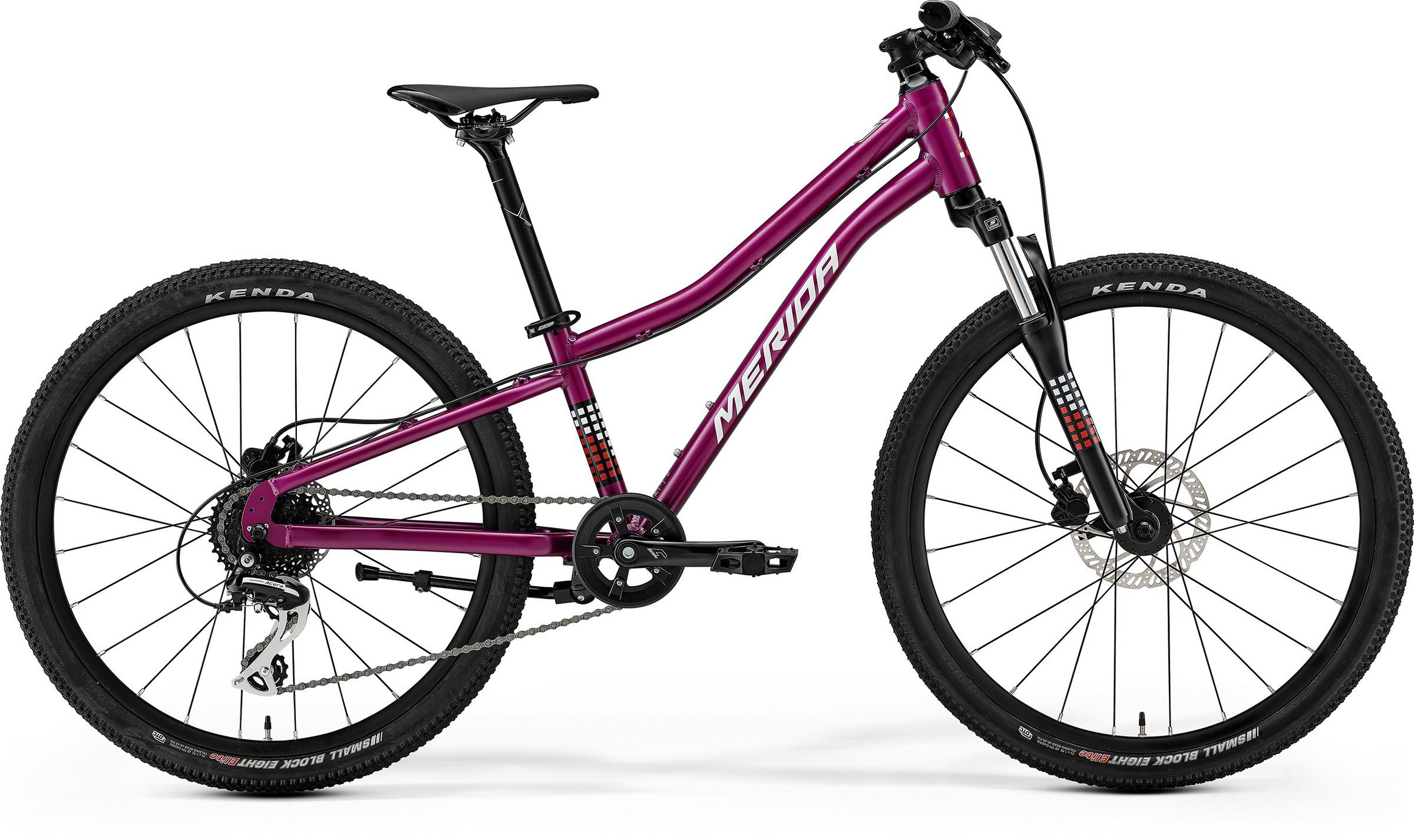

Bicycle technical specifications
Frame and suspension
Frame:
MATTS J. 24+; MAT aluminium; 24×2.4″ max. WHS; 135×9/100×9 AST; BSA BBR
Fork:
Suntour XCT-JR DS; Custom coil; 50 STR; 24×2.1″ max. WHS
Drivetrain
Rear derailleur:
Shimano RD-M302-8; SGS
Shifters:
Shimano SL-M315-8
Crankset:
MERIDA EXPERT JR; 28 ATC; MAT Aluminium Crank length: 140 mm
Cassette:
Sunrace CSM558AU; 11-32 ATC; 8 GER
Chain:
KMC Z8.3
Bottom bracket:
FSA TH-7420ST, 68-118
Pedals:
Marwi SP-202
Brake system
Brakes:
Tektro M275; hydraulic brake / Tektro M275; hydraulic brake
Brake discs:
Tektro TR160; 160mm / Tektro TR140; 140mm
Cockpit
Handlebar:
MERIDA EXPERT JR; MAT aluminium; 620 WHB; 0 RHB
Stem:
MERIDA CC; MAT aluminium; 31.8 DSH; -6 ASD / Length: 60 mm
Grips:
MERIDA EXPERT JR
Headset:
FSA NO.10P Neck15
Wheels
Wheel size:
24″
Rims:
MERIDA JR 24+; MAT aluminium
Front hub:
KT-K68F; 100×9 WHF; 24 SPH
Front tire:
Kenda Small Block 8; 24×1.95″; fold
Rear tire:
Kenda Small Block 8; 24×1.95″; fold
Spokes:
Black steel
Saddle and components
Saddle:
MERIDA EXPERT JR
Seat post:
MERIDA COMP CC; 27.2 DSP; 0 SSB; MAT aluminium
Seat post clamp:
MERIDA COMP QR
Accessories
Kickstand:
kickstand adjustable alloy
Bell:
NH-B409AP
